Introduction
Atahfer Open Frame LCD Monitor high brightnes Series offer flexible options for TFT LCD Panel, touchscreen, signal interface and bracket mounting. The application: outdoor advitising, realway station, KIOSK, etc. ATA-19OPHBM01 is 19'' Open Frame monitor(wide screen) with 1000Nits High Brightness, 1366X768 resolution TFT LCD Screen, with 0~50 °C operating temperature range.
Specifications
Model No.	ATA-19OPHB02
Description	19' Open Frame LCD Monitor , TFT LCD 1000nits, 1366x768
Size	19"
Display Area (mm)	409.8(H)x 230.4(V) mm
Pixel Pitch (mm)	0.282(H) x 0.282(V)
Resolution	1366x768
Brightness	1500 cd/m2
Contrast Ratio	1000 : 1(typ)
Backlight	LED Backlight
Viewing Angle	170(H): 160(V)
Display Colors	16.2M colors

Power Information
Power Source	AC 100~240 V, Universal,±10%
Power Consumption	31 W typical, normal operation
Power Management	VESA DPMS Compliant
Display Signals
Plug & Play	VESA DDC 1/2B
Signal Connector	15 pin D-Sub(VGA)/DVI-D
Mechanical
Material	Metal Frame
Mounting	VESA Mounting
Certifications
Compliance	CCC,CE,FCC,ROHS
Optional
Touch screen	SAW,3M Capacitive,Projecitve Capacitive Touch Optional
High Brightness	800/1000/1500nits Optional
Order Information
ATA-19OPHBMW01-TR	19’’ Open frame LCD Monitor with Resistive touch,1000Nits high brightness
AP-19OPHBM01	19 ’ Open frame LCD Monitor without touch, 1000Nits high brightness

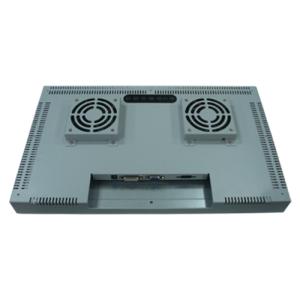

19" lcd open frame monitor(16:9 wide screen) with 1500nits high brightness

Open Frame Monitor
