Introduction
Atahfer Open Frame LCD Monitor high brightnes Series offer flexible options for TFT LCD Panel, touchscreen, signal interface and bracket mounting. The application: outdoor advitising, realway station, KIOSK, etc. ATA-104OPHBM01 is 10.4'' Open Frame monitor with 1200Nits High Brightness, 800x600 resolution TFT LCD Screen, with 0~50 °C operating temperature range.
Specifications
Model No.	ATA-121OPHBM01
Description	12.1'' Open Frame LCD Monitor , TFT LCD 1000nits, 800x600
Size	12.1"
Display Area (mm)	246.0(H)x 184.5(V) mm
Pixel Pitch (mm)	0.3075(H) x 0.3075(V)
Resolution	800x600
Brightness	1000 cd/m2
Contrast Ratio	600 : 1(typ)
Backlight	LED Backlight
Viewing Angle	140(H): 110(V)
Display Colors	16.2M colors

Touch Screen
Type	5 Wire Resistive Touch Screen
Touch Connectors	USB or RS232 (Optional)
Power Information
Power Source	AC 100~240 V, Universal,±10%
Power Consumption	31 W typical, normal operation
Power Management	VESA DPMS Compliant
Display Signals
Plug & Play	VESA DDC 1/2B
Signal Connector	15 pin D-Sub(VGA)/DVI-D
Mechanical
Material	Metal Frame
Mounting	VESA Mounting
Certifications
Compliance	CCC,CE,FCC,ROHS
Optional
Touch screen	SAW,3M Capacitive,Projecitve Capacitive Touch Optional
High Brightness	800/1000/1500nits Optional
Order Information
ATA-121OPHBM01-TR	10.4’’ Open frame LCD Monitor with Resistive touch,1200Nits high brightness
AP-121OPHBM01	10.4 ’ Open frame LCD Monitor without touch, 1200Nits high brightness

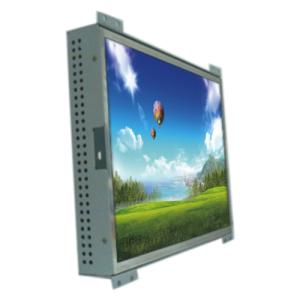

sunlight readble 12.1" lcd open frame monitor with 1000nits high brightness
